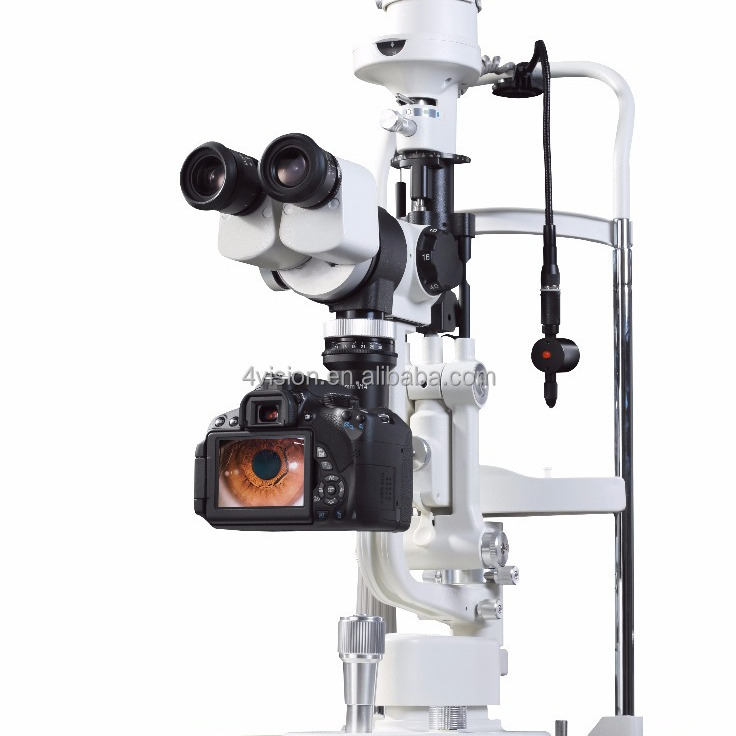

Digital Slit Lamp Microscope with Professional Software
SL-360-Image (LED Bulb)
SL-350-Image (Halogen Bulb)
Features:
| Configurations: Beam splitter, Camera adaptor, DSLR camera, and Professional software. | |
| Options: background illuminator, Computer, printer. | |
| Still image and live video acquisition, patient database management. | |
| Digital SLR camera (CANON EOS 600D). | |
| Viewfinder: Microscope eyepiece, camera viewfinder, monitor of both camera and PC. | |
| USB transmission interface. | |
Specifications:
| Microscope type | Galilean system |
| Magnification changer | Five Steps by drum rotation |
| Total magnification | 6X, 10X, 16X, 25X, 40X |
| Ocular magnification | 12.5 X |
| Ocular field | φ18mm |
| Inter pupillary distance | 52mm~78mm |
| Diopter adjustment | -6D~+6D |
| Object image field | φ in mm: 7(6X), 22(10X), 13.5(16X), 8.5(25X), 5.5(40X) |
| Slit image width | 0~14mm continuous |
| Slit image length | 1~14mm continuous |
| Light source | 6V / 20W halogen incandescent light bulb / or 3V/3W LED bulb. |
| Slit image radial range | 0~180° |
| Filters | Heat absorption, redfree (green), cobalt blue |
| Illumination fields | φ in mm: 0.2/ 1/ 2/ 3/ 5/ 10/ 14/ 1~14mm continuously |
| Illumination intensity: | ≥50KLX |
NEW VISION dedicates to developing and manufacturing High Quality Ophthalmic and Optometry Equipment and offering digital imaging solutions to Slit lamp, Operation Microscope, Fundus Camera, AB Scan, as well as live/ video recording systems for surgery processing in the operation room.
Q: What's the payment terms ?
A: Normally T/T in advance. Western Union, Paypal, L/C, Trade Assurance is also available.
Q: How long is your delivery time?
A: If in stock, the order will be dispatched within 3 working days after the payment receipt. If the products are not in stock, around 7 days after the payment receipt. For some special products, delivery time need to be confirmed with the sales person.
Q: What's the warranty Policy?
A: We offer 1 year warranty and life time maintenance.
